STEEL BELT TRACKING SYSTEMS

We produce a series of steel belt tracking systems to control the lateral movement of the steel belts, aimed at ensuring stable operation of the steel belts in various complex environments. This manual helps customers understand how to choose the  suitable steel belt tracking system for a particular application.

Type 1: Compact push rod auto tracking system - MKCBT

Type 2: Compact electrical motor auto tracking system– MKAT

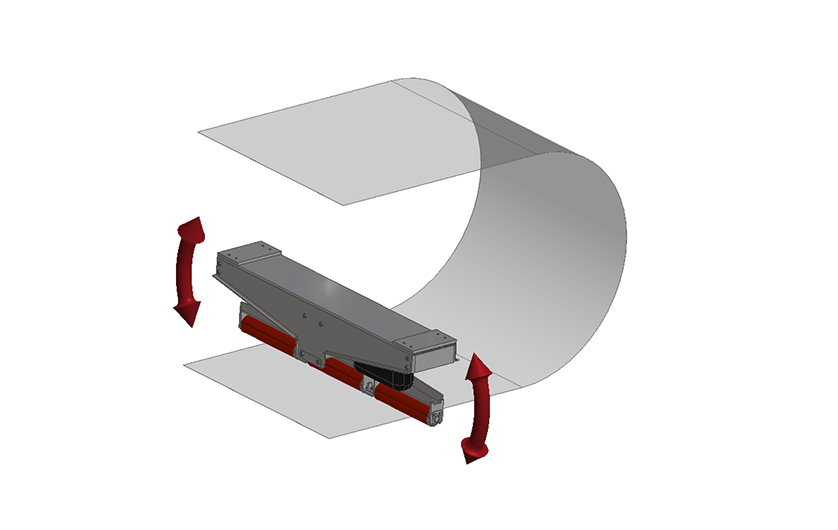

Compact push rod auto tracking system – MKCBT, Recommended to bakery oven.

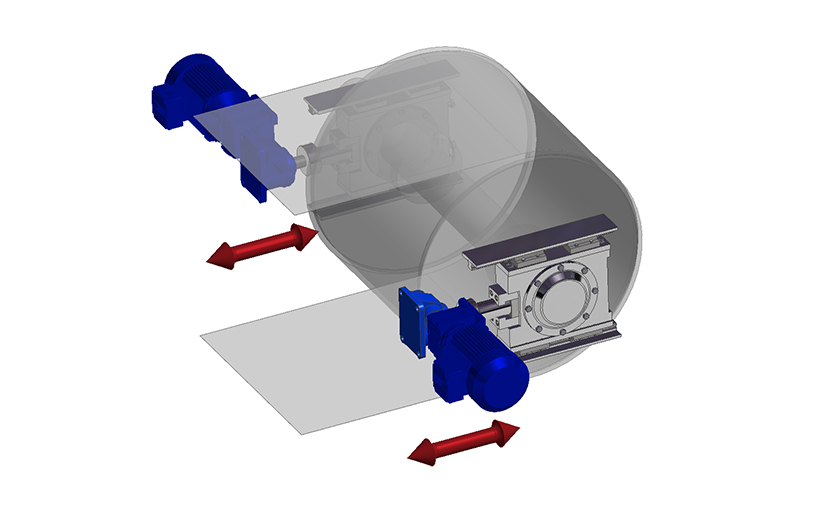

Compact electrical motor auto tracking system– MKAT, Recommended to bakery oven.

CBT纠偏装配
气缸MKPAT纠偏

Type 3: Hydraulic auto tracking system – MKHST

Type 4:Cylinder auto tracking system – MKPAT

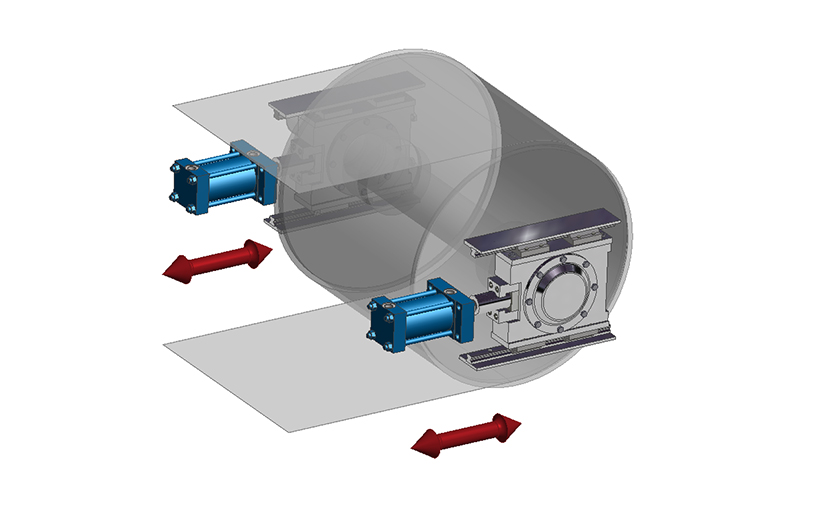

Hydraulic auto tracking system – MKHST, recommended to heavy machines, like Presses. The tension force reaches more than 20Mpa.

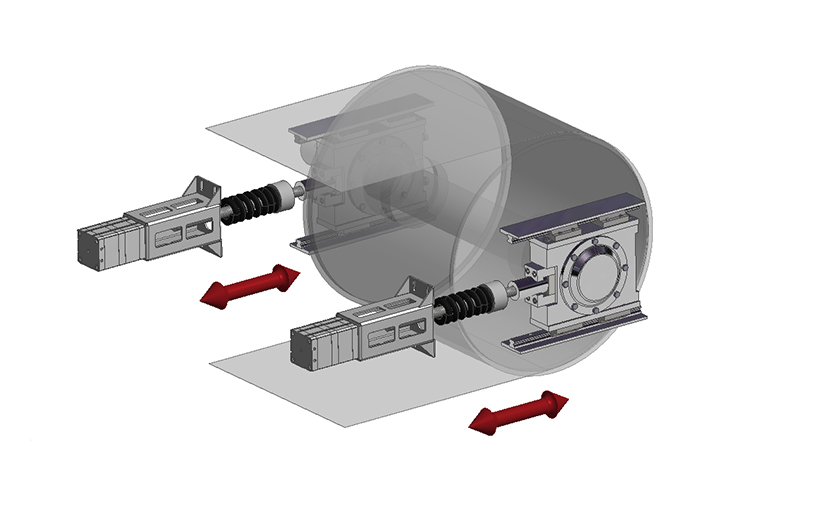

Cylinder auto tracking sytem – MKPAT, recommended to chemical industry.

液压纠偏装配MKHST
AT纠偏

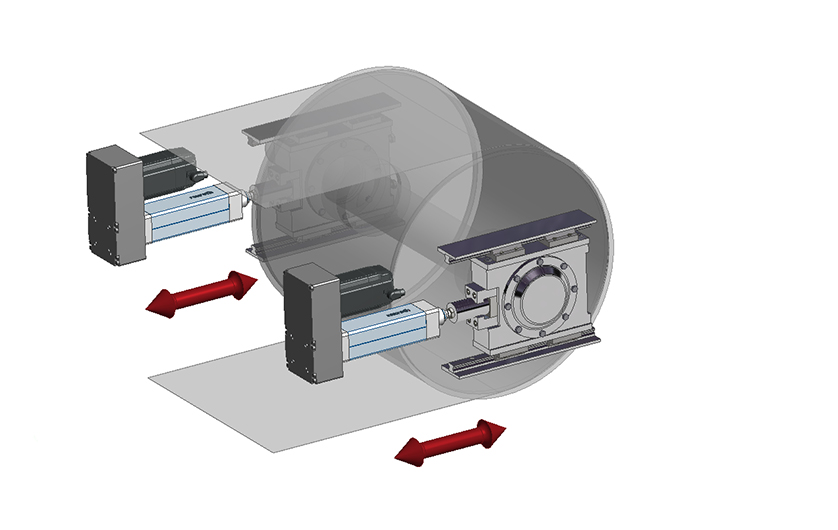

Type 5: Electromechanical Cylinder Tracking Device ‒ MKEMC

that can be used in any application where high accuracy is required

伺服电缸纠偏MKEMC80

Steel belt tracking system is an auxiliary system, which needs to be established on the basis of a good overall system of the steel belt machine itself, especially the machining accuracy of the drum, geometric parallelism, and appropriate frame strength.
